Audio Guidance: Identifying Audio Formats

How Do I Identify Audio Formats?

wax cylinder

open reel quarter inch tape

audio cassette tape

Sound recordings come in a variety of shapes and sizes and have been around since the late nineteenth century. While there are a number of audio formats you may find at home or in a professional environment, each one presents different requirements for identification, physical handling, and playback equipment used. Some of the more common types of audio include ¼-inch open reel tape, audio cassettes, and grooved disc recordings.

Magnetic Media

Open Reel ¼-inch tape

refer to caption

Open Reel ¼-inch Tape

Magnetic recording tape was invented in 1928. However, it wasn’t until the late-1940s that the recording industry fully adopted the format. Compared to grooved recordings, magnetic tape offered higher fidelity, longer record times, and the ability to be edited.

¼-inch open reel audio tape is supplied in reels having a diameter of 5-inches, 7-inches, and 10.5-inches and may vary in length depending on the tape speed. 1-inch and 2-inch open reel tapes (in width) also exist and were primarily used in professional environments.

  • There are different types of tape base for ¼-inch width audio tape. Acetate and polyester are most common, although you may encounter PVC or paper base as well.
  • An easy way to tell if you have one of the two most common types of ¼-inch tape is to hold the tape up to a light source. If the tape appears opaque it is polyester; if the tape is translucent, it is acetate.
  • Tape speeds vary between 30 ips (inches per second) to 15/16 ips, with speeds of 7.5 ips and 3.75 ips being the most common.

Audio Cassette

refer to caption

Audio Cassette

This tape format was introduced in the United States in the mid-1960s by Phillips. Cassette recordings have been used for a number of purposes, including oral histories, lectures, conferences, and music. Since they were primarily used for convenience and not necessarily quality, cassettes are not considered to be a stable or high fidelity medium.

  • Cassettes are made with polyester base tape, have just over a ⅛-inch tape width, and a slow playback speed of 1⅞ ips, thus contributing to a limited dynamic range and frequency response.



Other Types of Magnetic Audio

Wire Recording

refer to caption

Wire Recording

An alternate form of magnetic recording, the wire recording was initially introduced in the late 19th century, but further developed in the United States during World War II. Spools are about 3½-inches in diameter. This format was ultimately succeeded by tape due to its low sound quality. While stainless steel wire recordings (post World War II) are not susceptible to the same types of degradation as open-reel tapes, they may be damaged easily and playback equipment is obsolete. You may find the wire recordings in your collection date from around the 1940s to the 1960s.

Magnabelts

refer to caption

Magnabelt

These magnetic belts are similar in appearance to dictabelts and were used for dictation purposes, but do not contain grooves.

















Digital Audio Tape (DAT)

refer to caption

Digital Audio Tape (DAT)

Digital Audio Tapes were introduced by Sony in 1987, and are magnetic tapes that store audio digitally. A cartridge houses a 4mm magnetic tape and recordings can be at, below, or above the 44.1 kHz sampling rate of CDs.















Grooved Recordings

refer to caption

Grooved Recording

You may encounter grooved discs at home or in professional collections. Discs vary in size and speed and have different coatings and substrates, which may include: aluminum, lacquer/acetate, plastic, and cardboard. Below are several of the more common types of phonograph records:

Laminated Discs

Produced on laminated materials, this is the most common type of disc recording. The substrate may consist of aluminum (the most common), glass (a substitute for aluminum during World War II), steel (a substitute for aluminum during World War II), or cardboard. These discs will have lacquer coats and can vary in size from 18-inches to 7-inches in diameter. Playback speeds will vary depending on the type of laminated disc you encounter, although 78 rpm is the most common.

Aluminum Discs

A type of instantaneous-recording produced on an all-metal aluminum disc, these discs have no coating and are easy to identify due to their silvery, metallic surface.

Long Play and 45s

These are most commonly 12,10, or 7-inches in diameter and are pressed on shellac or vinyl by a metal stamp. They may play back at 78, 45 or 33⅓ rpm (microgroove).



Other types of Grooved Recordings

refer to caption

Audograph Disc

refer to caption

Soundscriber Disc

Soundscriber and Gray Audograph Discs

Thin plastic discs such as these may also be found in collections. These were primarily used for dictation and need specialized equipment to playback. Dictabelts (a thick transparent vinyl belt), are another form of grooved recording that were also used for dictation.











refer to caption

Wax Cylinders

The earliest recording medium produced commercially, these are grooved wax–cylinders, which are the predecessors to the grooved disc. Wax cylinders can be solid or have a core of cardboard. They are very fragile and should be handled with care, including the grooves which can easily be scratched.















Optical Media

Compact Disc (CD)

refer to caption

Compact Disc

Audio can also be stored on optical discs called compact discs (CDs). You may encounter different types of CDs in your collections. CD-Recordable (CD-R) discs can be recorded to only once, after which the disc becomes read only. Many times these discs provide protection for your records against tampering or loss of data. Compact Disc-Read Only Memory (CD-ROM) discs are formulated a little differently than Audio CDs (CD-DA), allowing them to store various types of data including audio data files.















Where can I find more information?

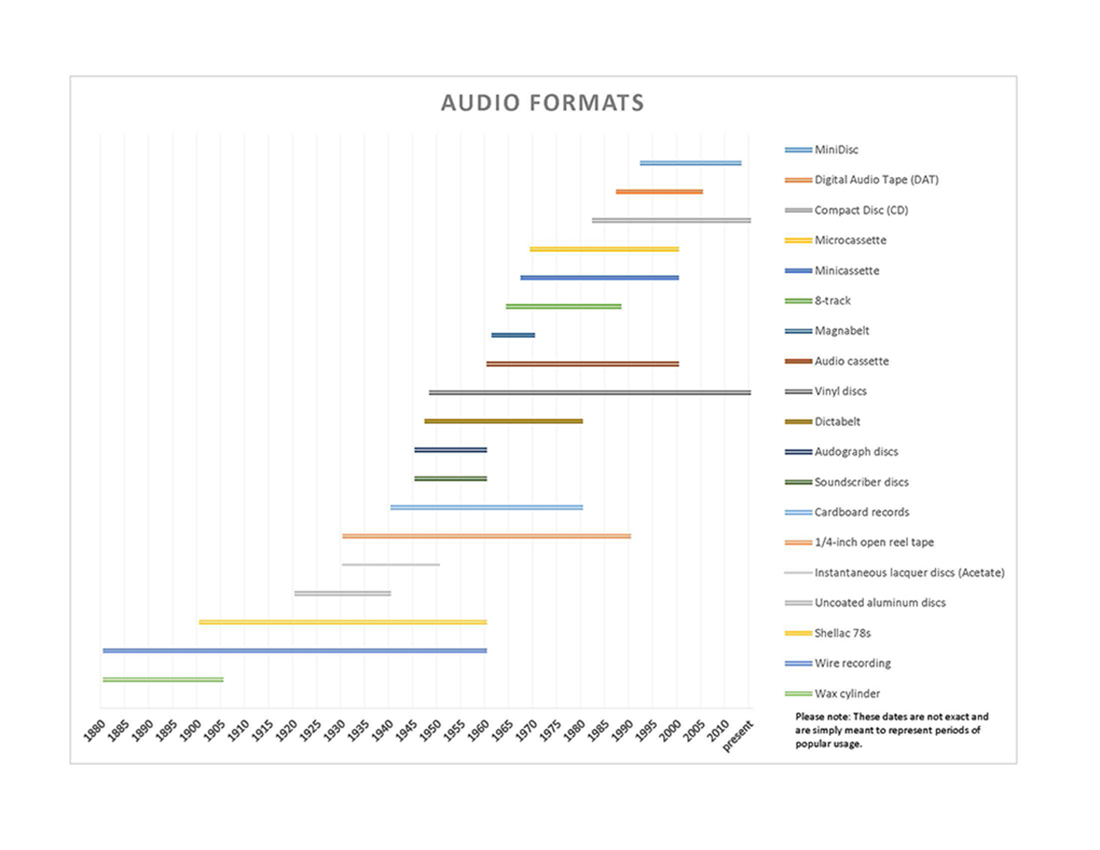

Refer to Caption Audio FormatsPDF Version

For more information on audio format identification, please see:
