Comparison of Drying Methods

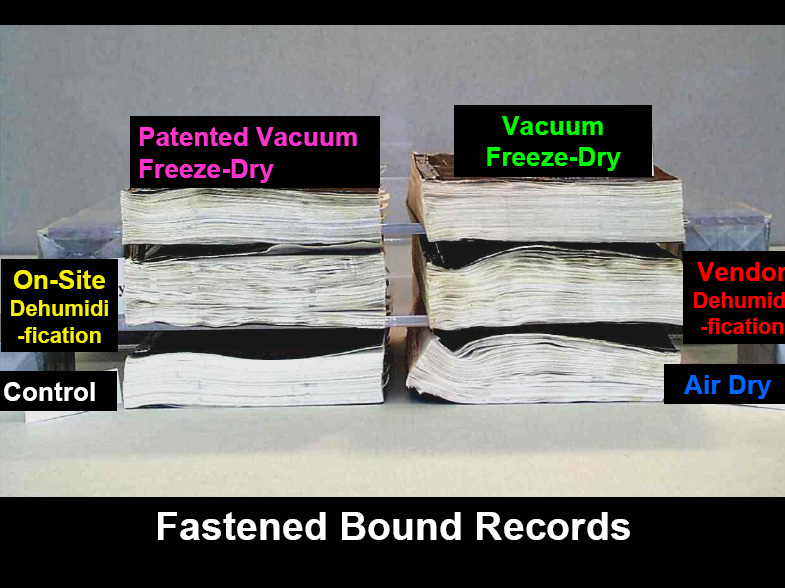

Books bound with metal fasteners dried satisfactorily.  The air-dried volume showed the most pronounced distortion.  Because hard covers were lacking on these volumes, they could not be dried vertically, and pages were forced to flex across a fastener in the flat open format used for drying.

Refer to CaptionSlide 34 Comparison of Drying Methods Kaplan/Ludwig 2003

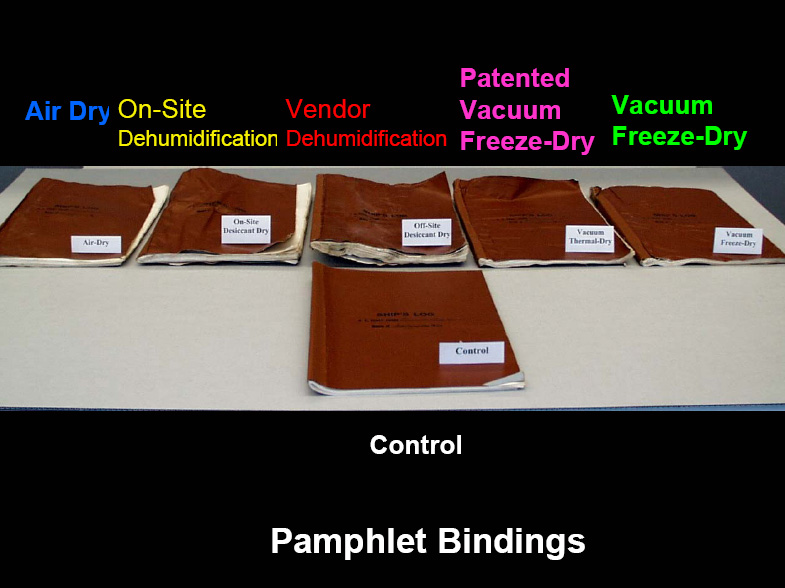

All pamphlet-style volumes dried acceptably.  Dehumidification-dried samples show the greatest distortion. We cannot say whether the patented vacuum freeze-dry sample was damaged by the process’s compression plates, or its placement within a box.

Refer to CaptionSlide 35 Comparison of Drying Methods Kaplan/Ludwig 2003
